What Is Monte Carlo?

Example 1 - Monte Carlo Integration To Estimate Pi

Example 2 - Monte Carlo solutions of Poisson's Equation

Example 3 - Monte Carlo Estimates of Thermodynamic Properties

General Remarks on Parallel Monte Carlo

• A powerful method that can be applied to otherwise intractable problems
• A game of chance devised so that the outcome from a large number of plays is the value of the quantity sought
• On computers random number generators let us play the game
• The game of chance can be a direct analog of the process being studied or artificial
• Different games can often be devised to solve the same problem
• The art of Monte Carlo is in devising a suitably efficient game.


Different Monte Carlo Applications

Probability Theory

• Probability Density Function

• Expection Value (Mean)


Variance and Standard Deviation

• Sampling a Cumulative Distribution Function

Fundamental Theorem

• Sample Mean, a Monte Carlo estimator of the expection value
• Fundamental theorem of Monte Carlo

Statistical Error in MC Estimator

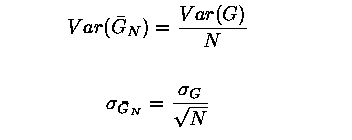

• Variance and Standard Deviation of Estimator
• Central Limit Theorem


• A simple example to illustrate Monte Carlo principals
• Accelerate convergence using variance reduction techniques
  • Use if expectation values
  • Importance sampling
• Adapt to a parallel environment

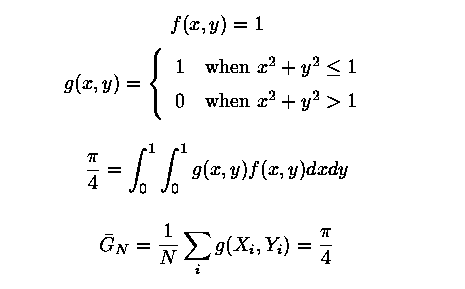

Monte Carlo Estimate of Pi

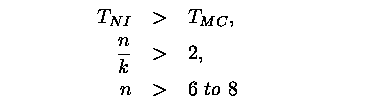

When to Consider Monte Carlo Integration

• Time required for Monte Carlo Integration to a standard error epsilon

• Time required for numerical integration in n dimensions with trunction error of order h to the power k. (Note: k for Simpson's 1/3 rule is 4)

• Rule of Thumb


Serial Monte Carlo Algorithm for Pi

            Read N
            Set SumG = 0.0
            Do While i < N
               Pick two random numbers xi and yi
               If (xi*xi + yi*yi £ 1) then
                  SumG = SumG + 1
               Endif
            Enddo
            Gbar = SumG / N
            SigGbar = Sqrt(Gbar - Gbar2)
            Print N, Gbar, SigGbar

Parallelization of Monte Carlo Integration

• If message passing time is negligible
  • For same run time, error decreases by factor of Sqrt(p)
  • For same accuracy, run time improves by a factor of p
• Should use same random number generator on each node (easy for homogeneous architecture)

Monte Carlo Estimates of Pi

Number of      Batch     CPU         Standard     True
Processors     Size      Time(sec)   Deviation    Error
--------------------------------------------------------
     1        100,000    0.625       0.005        0.0018
     2         50,000    0.25        0.005        0.0037
     4         25,000    0.81        0.005        0.0061
--------------------------------------------------------

• To try this problem, run MCPI by : % cd % cp -r /usr/local/mc . % cd mc/mcpi % run
• Parallel MC Estimate of Pi, mcpi.C
  1. Creating the random number generators for
  ( int i=0; i < num_dimension; i++)
  {
  // create r.n. generator
  // the seeds are different for the processors seed = (myRank + 1) * 100 + i * 10 + 1;
  if ( seed == 0 ) rand[i] = new RandomStream(RANDOMIZE);
  else rand[i] = new RandomStream( seed );
  }
  2. Each processors will run num_random / numProcs random walks
  for ( i=myRank; i < num_random; i+=numProcs )
  {
  // N random walks
  2a. Generating random numbers
  for ( int i1=0; i1 < num_dimension; i1++)
  {
  ran[i1] = rand[i1]- > next();
  }
  2b. Calculating for integration
  if ( inBoundary
  ( ran, num_dimension )
  )
  {
  myPi += f( ran, num_dimension ) * pdf( ran, num_dimension );
  count++;
  }
  }
  3. Calculating Pi from each processor myPi = 4 * myPi / num_random;
  MPI_Reduce
  (&myPi, &pi, 1, MPI_DOUBLE, MPI_SUM, 0, MPI_COMM_WORLD);
  4. Output the results and standard deviation, sigma if (myRank == 0)
  {
  cout << "pi is = " << pi << " sigma = " << 4 * sqrt
  ( (pi/4 - (pi/4)*(pi/4))/ num_random) << " Error = " << abs(pi - PI25DT) << endl;
  }

Variance Reduction by Use of Expectation Values

• For original sampling
• Carry out integrations from 0 to 1/Sqrt(2) analytically
• Sample from 1/Sqrt(2) to 1
• Variance = 0.0368
• Speedup by (0.168/0.0368) > 4.5 for same accuracy.
• Carry out integration over one coordinate analytically.


Variance Reduction by Important Sampling

• Say
• Can use a different pdf
• Greatest reduction in variance when

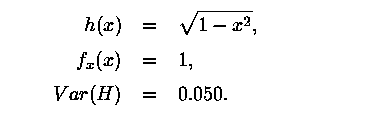

A Product h(x)f(x) and a possible f~(x)

Using Qualitative Information

• Smaller values of x contribute more to integral
• Indicated change in pdf reduces variance
  • from 0.0498
  • to 0.00988
• Speedup > 5

Omniscience Yields Zero Variance

• Choose lambda by requiring integral to be one let then
• For h(x) = Sqrt(1-x**2), the variance is reduced to zero.
• Boils down to finding a simple function that approximates that to be integrated.


• Poisson's equation
• Geometry
• Source:
• Boundary condition: u(x,y) = 0 on boundary

Poisson's Equation As a Fixed Random Walk Model

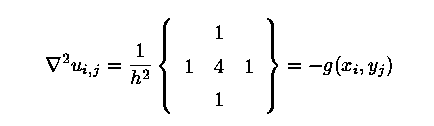

• Using a finite difference approximation,
• Solving

Fixed Random Walk Solution Algorithm

• From point (i,j), start a random walk. Probability of moving to each of the adjacent nodes is 1/4.
• Generate a random number to determine which way to move
• Add g(x,y) at the new position
• Repeat this until a boundary is reached
• After N random walks, the estimate of u at (i,j) is


Parallel Strategies for Fixed Random Walk

• When solving at all grid points
  • Start from boundary
    • Outside to inside
    • Row by row
    • Boundary updating depends on relative message passing time
    • Update only within each processor (poisson4.C)
    • Update globally when any processor finishes a point (poisson5.C)
    • May help to decompose problem (poisson.C)
• When solving at only a few point(s) may want to split walks for point between processors

Results for Fixed Random Walk in Solid Slab

Number of      Walks/    CPU               Standard
Processors     Point     Time   u(20,20)   Deviation
-----------------------------------------------------
     1          1000      400    0.0483      0.00016
	  2a         1000      270    0.0480      0.00020
     4a         1000      165    0.0485      0.00020
=====================================================
     2b         1000      313    0.0477      0.00020
     4b         1000      234    0.0480      0.00029
----------------------------------------------------

  a - Update all processors at same time
  b - Only update within individual processor

• To apply Monte Carlo to a 1x1 slab with a 0.5x0.5 center hole, run poisson4.C and poisson5.C by : % cd % cd mc/poisson4 % run
• The Structure of poisson.C
  1. // Set boundary condition boundary(nx, ny);
  2. Divide the initial region into 4 sub-region if necessary
  2.a Evaluate the virtual parallel inner boundary line 2.b Evaluate the virtual vertical inner boundary line 2.c Initialize boundary for each sub-region
  3. // Calculate u for (ix,iy) of each region while(1)
  {
  3.a // Calculate u[ix][iy] for a point (ix,iy),
  and send it to others sendU
  ( rand, ix, iy, delta );
  3.b // Receives u[iix][iiy] from the other processors for ( int i = 0; i < numProcs; i++)
  {
  if (i != myRank)
  {
  MPI_Recv(&uRec, 1, MPI_DOUBLE, i, 99, MPI_COMM_WORLD,&status);
  if (uRec <= -1000) flag = 1;
  else
  {
  ixp = ix + (i - myRank);
  // the index of inner boundary, iyp = iy;
  // u at this cell received from
  // another processor
  if ( ixp > (nx2[iRegion] - 1) )
  {
  ixp = nx1[iRegion] + (ixp - nx2[iRegion]) + 1;
  iyp = iy + 1;
  }
  3.c // Set this point as a boundary u[ixp][iyp] = uRec;
  onBoundary[ixp][iyp] = 1;
  }
  }
  3.d // Set ix, iy of next node for the processor ix += numProcs;
  if ( ix > (nx2[iRegion] - 1) )
  {
  ix = nx1[iRegion] + (ix - nx2[iRegion]) + 1; iy++;
  }
  assert( ((ix < nx) && (iy < ny)),
  " out of given domain");
  }

Floating Random Walk Solution Algorithm (point.C)

• The potential at the center of a circle of radius r, which lies entirely within the region is
• Start a walk at point (i,j).
• Construct a circle centered at point (i,j) with radius equal to the shortest distance to a boundary.
• Select an angle from the x-direction randomly between 0 and 2 Pi.
• Follow this direction to a new location on the circle
• When the new position is within epsilon of a boundary add the boundary potential and begin a new walk.

Sample Results for Floating Random Walk in Solid Slab

Number of      CPU  Time     CPU  Time
Processors     1000 Walks    100,000 walks
------------------------------------------
     1          0.44          3.06
     2          0.5           2.5
     4          0.5           1.4
------------------------------------------

• To try the floating random walk method, run the code point.C by : % cd % cd mc/point % run
• The structure of point.C
  1. // Set boundary condition
  2. // Set the points which are evaluated.
  for (int i=0; i < numPoint; i++)
  {
  x[i] = (i + 1.) / ( numPoint + 1. );
  y[i] = (i + 1.) / ( numPoint + 1. );
  }
  3. Evaluate each point
  for ( i=0; i < numPoint; i++ )
  { ... ...
  3.a All processors run for one same point
  for ( int ir=myRank;
  ir < num_random;
  ir+=numProcs )
  {
  // initilaizing the position of the point for each random walk xx = x[i]; yy = y[i];
  while (1)
  {
  // calculating the minimum distance of selected point // to the boundary minDist = MinDist(xx, yy, side);
  if ( minDist < acceptDist ) break;
  // each processor generates a random number, and make a random
  // move, the point moves randomly to any point at the circle
  // with a radius of minDist, and centered at (xx, yy) double ran = rand->next();
  xx += minDist * sin(2*pi*ran);
  yy += minDist * cos(2*pi*ran);
  }
  // sum tempU = EvalPoint( xx, yy, side );
  myU += tempU; mysqU += tempU * tempU;
  }
  // end of a random walk myU /= num_random;
  mysqU /= num_random;
  3.b // Sum the results from all processors MPI_Reduce(&myU, &u, 1, MPI_DOUBLE, MPI_SUM, 0, MPI_COMM_WORLD);
  MPI_Reduce(&mysqU, &sqU, 1, MPI_DOUBLE, MPI_SUM, 0, MPI_COMM_WORLD);
  3.c // print out if ( myRank == 0 ) cout << "At the point of " << x[0] << ", " << y[0] << " , u is = " << u << " , sigma = " << sqrt( (sqU - u*u) / num_random);

• Consider a system of atoms with a finite number of configurations.
• Let En denote energy of the n-th configuration
• The probability that the system is in the n-th configuration is
• The expectation value of observable property A is

Why not determine such expectation values exactly?

• Consider a 10x10x10 cubic crystal of atoms in which each atom has only two possible states.

Number of Possible Configurations = 2**1000

• Summing at a rate of one million configurations per second,

Time Required for Exact Calculation = 10**288 years

• In contrast, to achieve 1% accuracy, using the Monte Carlo method, about 10,000 terms must be summed.

Metropolis Algorithm

• Follows a sequence of configurations
• Pn(C) is probability of the n-th observation in configuration C
• T(C->C') is probability of making a transition from state C to state C'
• Probability of remaining in state C is
• Master equation for this Markov process is
• Rearranging master equation
• In steady state, transition probability must be independent of time and must goto zero; that is Pn(C) must be the steady state function P(C) and P(C)T(C->C') = P(C')T(C'->C)
• Since P(C) is proportional to Exp(-Ec/kT), this means
• What transition probability will give the correct probability function P(C)?
• The answer is not unique
• All we need is a function T(C->C') that satisfies the detailed balance P(C)T(C->C') = P(C')T(C'->C)
• One transition function that is often used is:

Example 3 - 2D Ising Model

• Simplify to a square lattice of N=LxL atoms. Each atom has only a spin degree of freedom,

spin = +1 (up),

spin = -1 (down)

• The energy of the n-th given configuration is
• For a given temperature T, the specific heat C and magnetic x susceptibility per site can be estimated as

2D Ising Metropolis Algorithm

• Let n = 0, and start with an arbitrary configuration, for example, all spins up.
• Pick two random integers x and y between 1 and L. Let DelE be the change in energy caused by changing the value of the spin at (x,y).
• Increase n by 1. If DelE < 0, accept the change. If DelE > 0 accept the new configuration with probability Exp(-DelE/kT). Go to step 2.

2D Ising - Metropolis Algorithm (Cont.)

• The Metropolis algorithm produces a series of configurations that eventually approaches a sampling sequence for the discrete probability function
• It is difficult to predict how long it will take for the Metropolis algorithm to reach this asymptotic state.
• This is usually determined empirically by seeing whether the average over a large number of configurations converges.
• Note: The algorithm requires DelE not E be calculated for each trial change. DelE is generally much easier to calculate.

Example 3 - Monte Carlo Estimates of Thermodynamic Properties

• Estimate heat capacity and magnetic susceptibility as functions of temperature.
• Have each processor handle a separate temperature calculation.
• INSERT PARALLEL FLOW FIGURE HERE

Results for 2D Ising Problem

• INSERT RESULTS FIGURE HERE
• To run this problem, use the code ising.C by : % cd % cd mc/ising % run
• The structure of ising.C
  1. // Set the parameters and initialize initialize( l, h, v );
  2. // Each processor evaluates the properties of system at a temperature
  for (int i=myRank;
  i < num_runs; i += numProcs)
  {
  double tau = tauMin + i * delTau;
  2.a // Make the atoms of system random distributed
  for (int j=0;
  j < 100*l*l; j++ )
  {
  ran1 = rand1->next();
  ran2 = rand2->next();
  makeMove( l, h, v, ran1, ran2, tau );
  }
  2.b // Go to random walks, and add the energy of each state
  for ( int i1=0; i1 < num_random; i1++ )
  {
  ran1 = rand1->next();
  ran2 = rand2->next();
  makeMove( l, h, v, ran1, ran2, tau );
  sumM += abs(m);
  sumM2 += m * m;
  sumE += e; sumE2 += e * e;
  }
  2.c Calculate the thermal properties double aveM = sumM / num_random;
  double aveM2 = sumM2 / num_random;
  double aveE = sumE / num_random;
  double aveE2 = sumE2 / num_random;
  double delSqM = aveM2 - aveM * aveM;
  double delSqE = aveE2 - aveE * aveE;
  aveM /= l * l;
  aveE /= l * l;
  double temp = tau * tau * l * l;
  double chi = delSqM / temp; double specHeat = delSqE / temp;

• Applicability of Parallel Monte Carlo
  • Most serial Monte Carlo codes are readily adaptable to a parallel environment
  • Strengths are still for
    • Multi-dimensional problems
    • Complex geometries
  • Variance reduction techniques must still be tailored to the specific problem (possible exception - stratified sampling for numerical integration) inherently serial must be modified for effective parallelization
  • Care must be taken to assure reproducible results
• Pseudorandom Number Generation on Parallel Computers
  • Fast RNGs with long periods required
    • Congruential
      • xnew = (a xold + c) mod m,
      • fast, typically repeats after a few billion numbers
    • Marsaglia
      • Faster, a million numbers per second on a laptop
      • period of 2**1492 for 32 bit numbers
  • Reproducibility highly desirable
  • Must assure calculations on different processors are independent
• Lehmer Tree
• Amdahl's Law
  • T1 = task execution time for a single processor
  • Tm = execution time for the multiprocessing portion
  • To = execution time of the sequential and communications portion (overhead)
    • Speedup = T1/(Tm+To)
  • For many Monte Carlo applications Tm is approximately T1/P where P is the number of processors
    • Efficiency = Speedup/P = 1/(1+F)
  • F = P*To/T1 is the overhead factor.
• Efficiency versus Number of Processors
• Overhead Time
  • Initialization time
  • Message passing time
    • Tends to increase nonlinearly with P
    • Tends to increase with size of problem (information passed)
  • Sleep time
    • Processor to processor variations resulting from randomness
    • Can't aggregate results until all processors done
    • Load balancing required in heterogeneous systems
